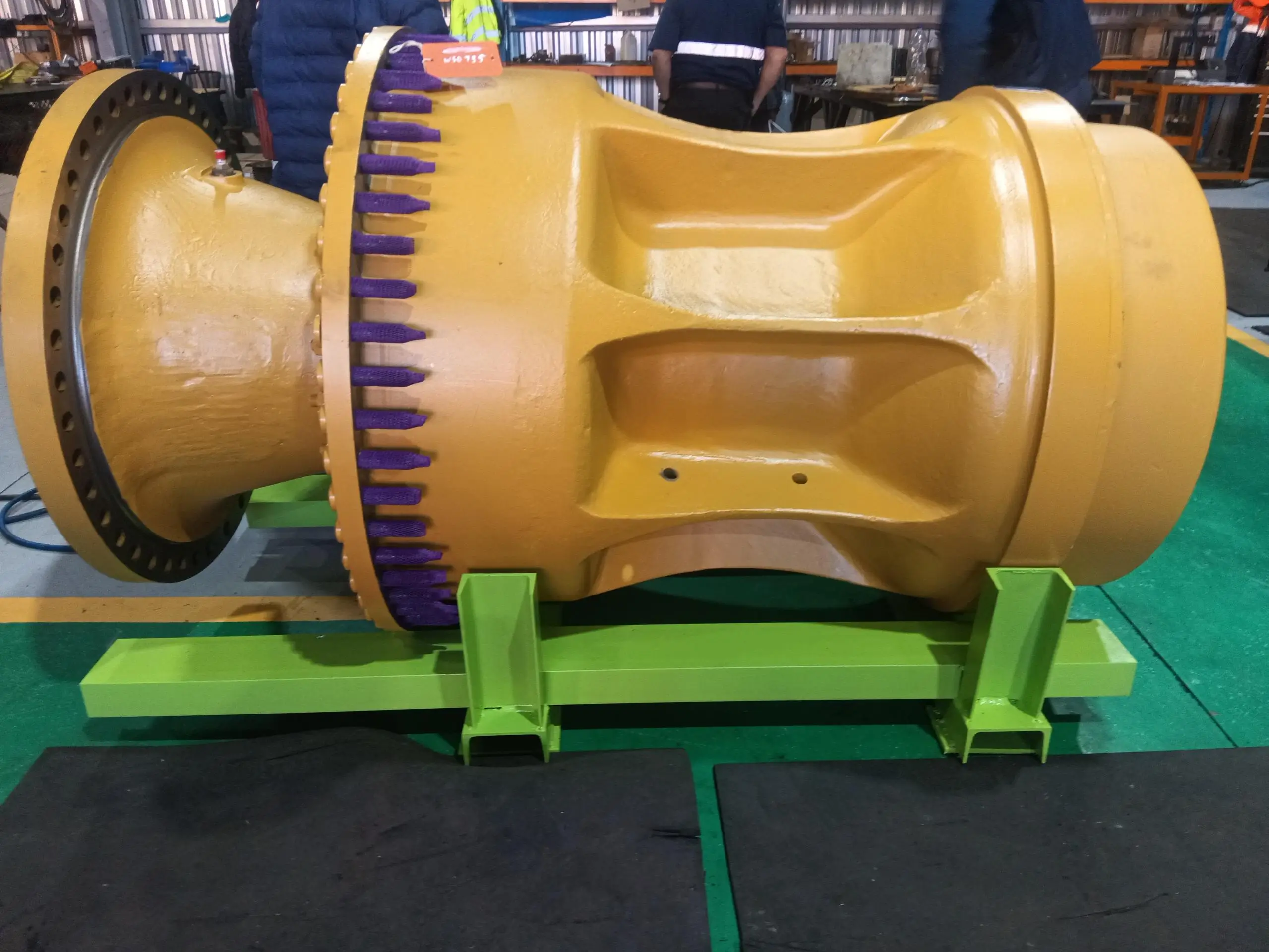

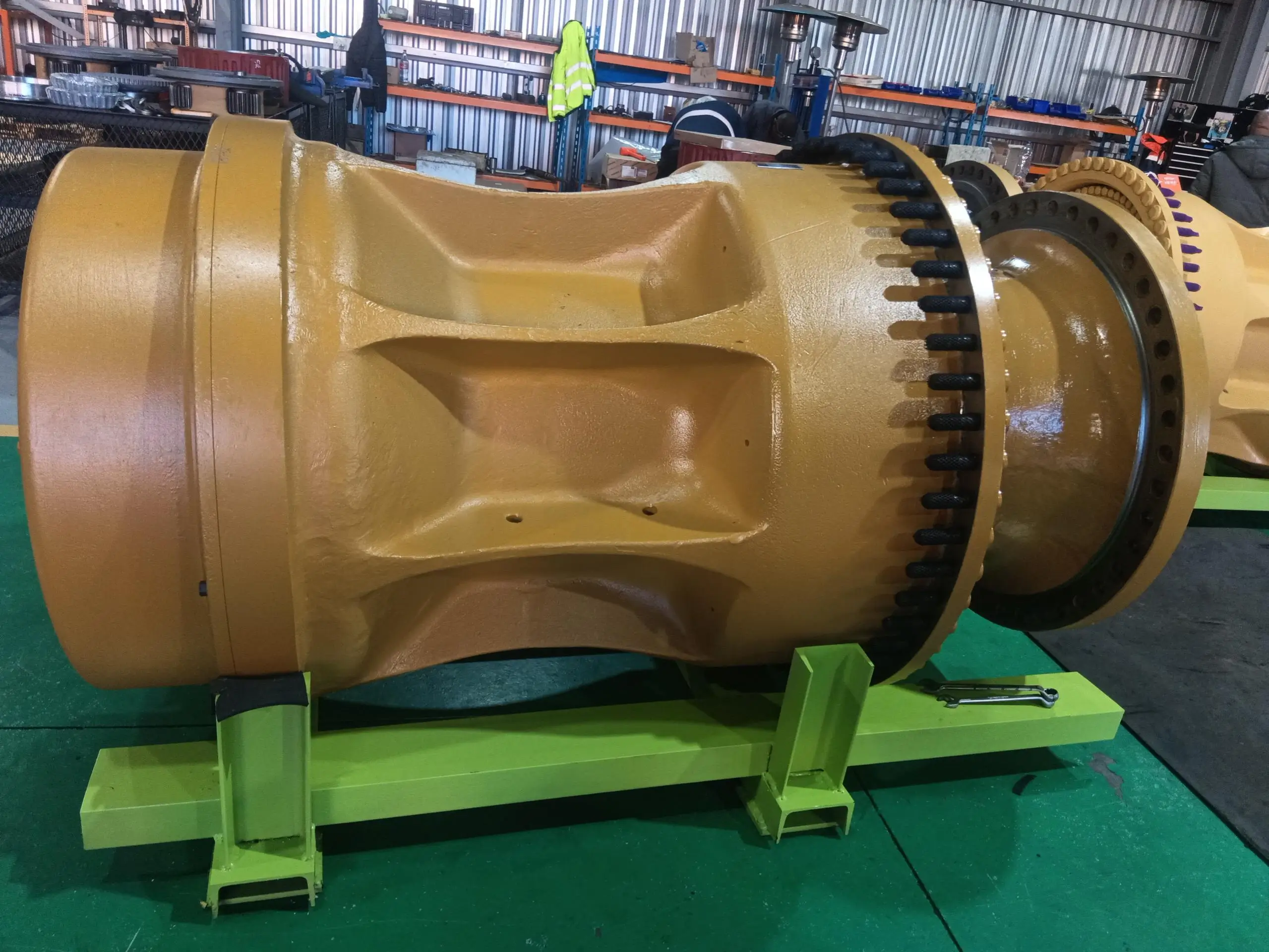

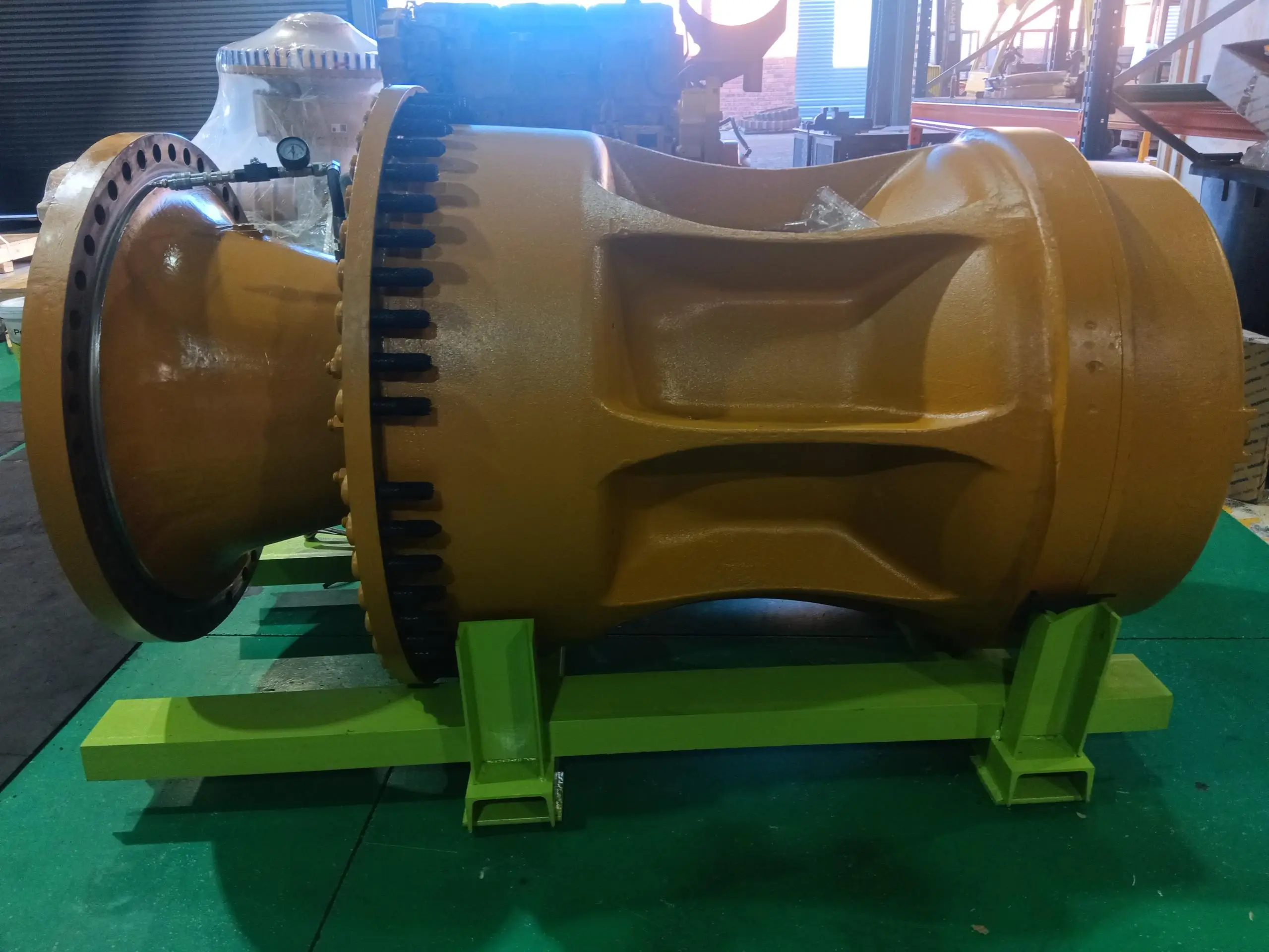

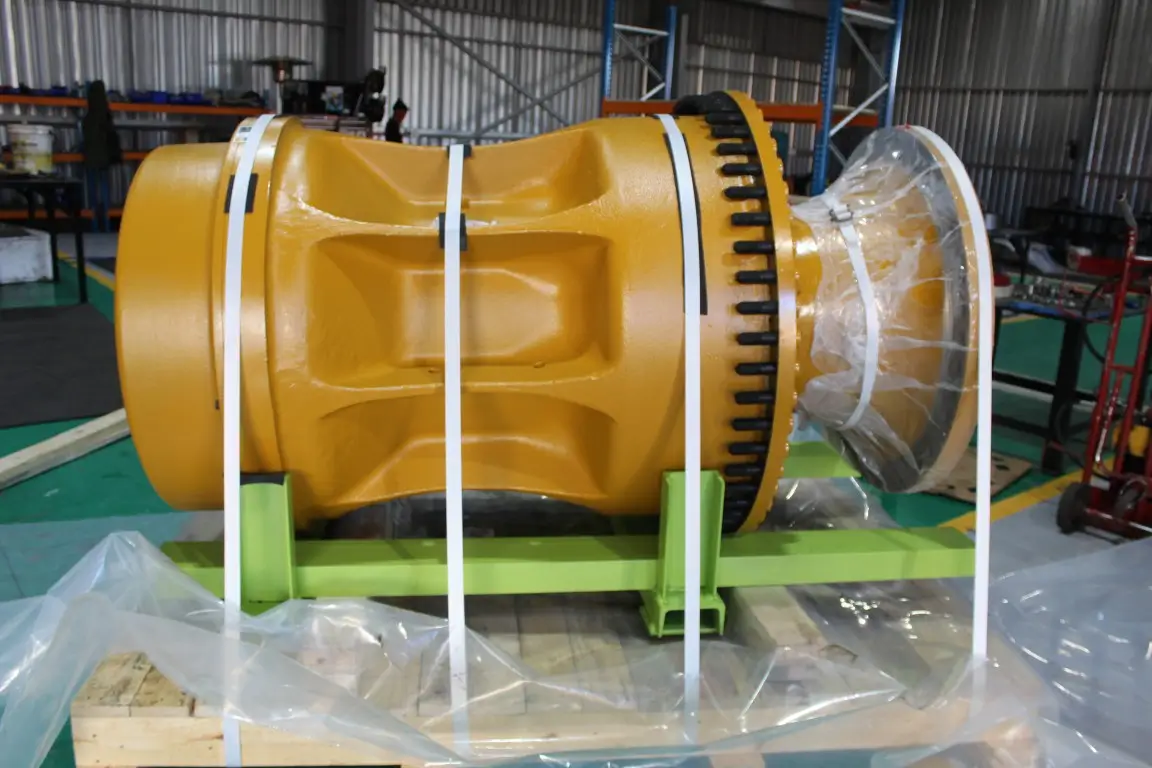

Caterpillar 789D Final Drive Assembly
Maximize machine uptime and maintain peak productivity on the haul road with the Caterpillar 789D Final Drive Assembly. Purpose-built to handle the intense mechanical demands of the 200-ton class Cat 789D mining truck, this heavy-duty final drive acts as the ultimate link in the mechanical drivetrain, converting engine horsepower into maximum rimpull and wheel torque.
Advanced Engineering & Construction
The Cat 789D final drive utilizes a double-reduction planetary gear design paired with full-floating axles. By distributing high torsional loads evenly across multiple planetary gears, the unit minimizes gear strain and localized heat buildup. Precision-machined gears, high-strength thrust washers, and heavy-duty roller bearings ensure smooth power transmission and long service life during prolonged, high-duty cycles.
Key Performance Features
-
High-Torque Reduction: Designed to work in tandem with the 2.35:1 differential, achieving a 10.83:1 planetary reduction for a total reduction ratio of 25.46:1.
-
Full-Floating Axle Design: Isolates the drive axle shafts from bending stresses caused by the massive payload weight (up to 324,319 kg / 715,000 lb GMOW).
-
Heavy-Duty Contamination Seals: Extended-life Duo-Cone™ style floating seals protect internal gears and bearings against abrasive rock dust, slurry, and moisture intrusion.
-
Continuous Lubrication & Filtration: Fully integrated into the rear axle fluid circuit (583-liter / 154-gallon capacity), promoting oil cleanliness, cooler operation, and reduced gear pitting.
Technical Specifications
| Parameter | Specification Details |
| Compatible Equipment | Caterpillar 789D / 789 Series Off-Highway Mining Trucks |
| System Type | Double-reduction, planetary gear with full-floating axles |
| Planetary Reduction Ratio | 10.83 : 1 |
| Differential Ratio | 2.35 : 1 |
| Total Reduction Ratio | 25.46 : 1 |
| Differential & Final Drive Oil Capacity | 583 L / 154 gal |
| Target Machine Operating Weight | 324,319 kg / 715,000 lb |
Applications
Ideal for surface mining, open-pit extraction, large-scale earthmoving, and heavy quarry operations where Caterpillar 789D haul trucks operate under continuous heavy loads on steep inclines and unpaved haul routes.
