Description

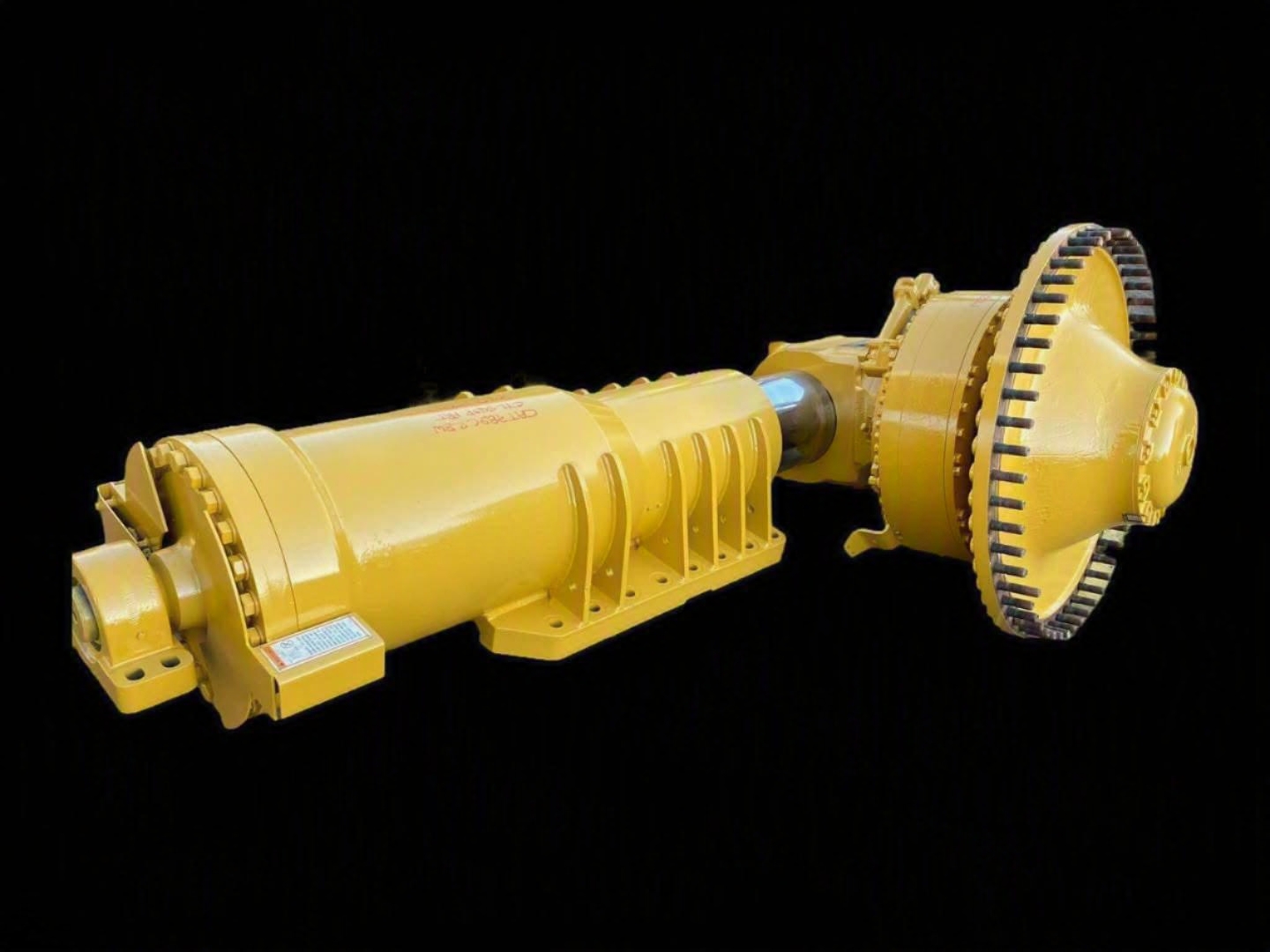

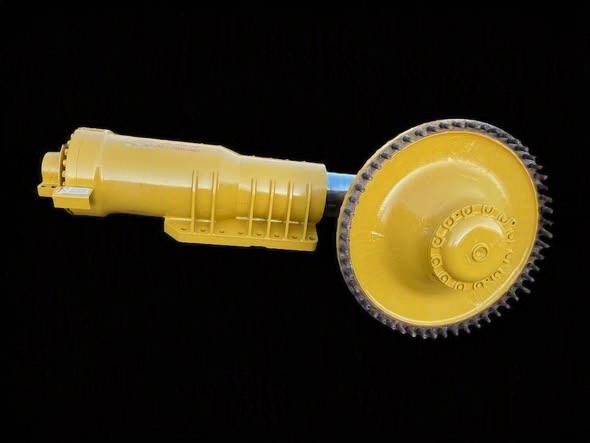

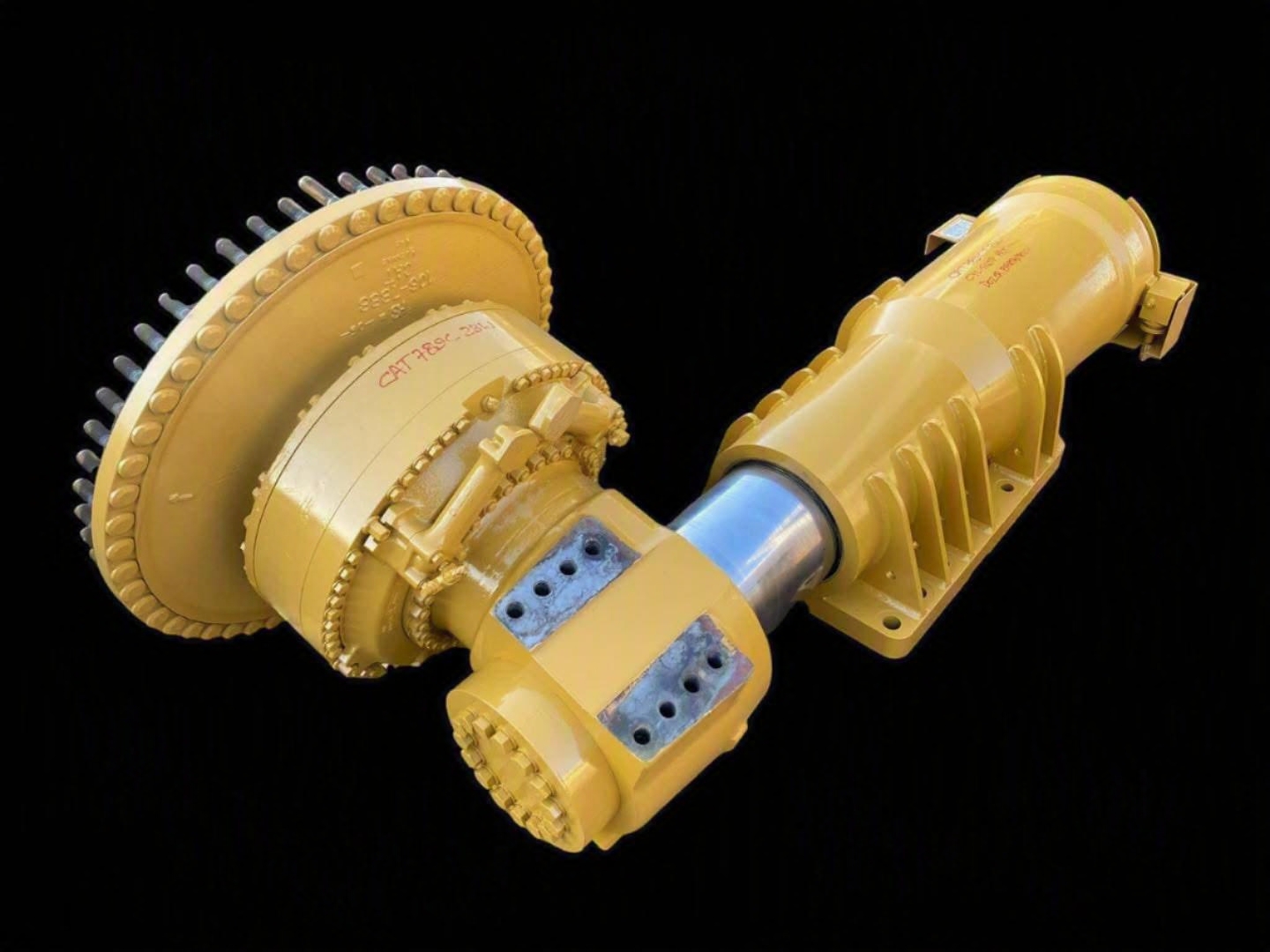

OEM-Quality Caterpillar 789D Front Corner Assembly

Minimize overhaul downtime and restore front-end steering stability with a complete Caterpillar 789D Front Corner Assembly. Designed specifically for Caterpillar’s 200-ton class (181-tonne nominal payload) off-highway mining trucks, this modular corner assembly combines the structural front wheel hub, steering spindle, heavy-duty kingpin linkage, front brake pack, and variable-stroke oleo-pneumatic suspension cylinder into a fully integrated unit.

Installing a complete corner assembly eliminates component alignment mismatches, speeds up planned maintenance turnarounds, and ensures structural integrity under high radial loads and severe dynamic braking forces.

Key Features & Benefits

• Modular “Drop-In” Corner Design: Consolidates the steering knuckle, wheel hub, spindle, brake caliper group, and suspension strut into a pre-aligned modular assembly.

• Nitrogen-over-Oil Shock Absorption: Designed around Caterpillar’s heavy-duty front suspension cylinders to absorb haul road impacts, protecting the main frame from structural fatigue.

• Precision Steering Geometry: Integrates heavy-duty steering linkage points and kingpin bearings to maintain precise wheel alignment and reduce front tire scuffing on 37.00-R57 or 40.00-R57 tires.

• High-Capacity Braking Integration: Accommodates Caterpillar’s front oil-cooled multi-disc brake assemblies (or heavy caliper disc systems) to provide reliable front retarding power on steep downhill grades.

• Heavy-Duty Duo-Cone & Face Seals: Features advanced sealing groups to protect internal spindle bearings and suspension seals from fine quarry dust, slurry, mud, and debris ingress.

Verified Technical Specifications
