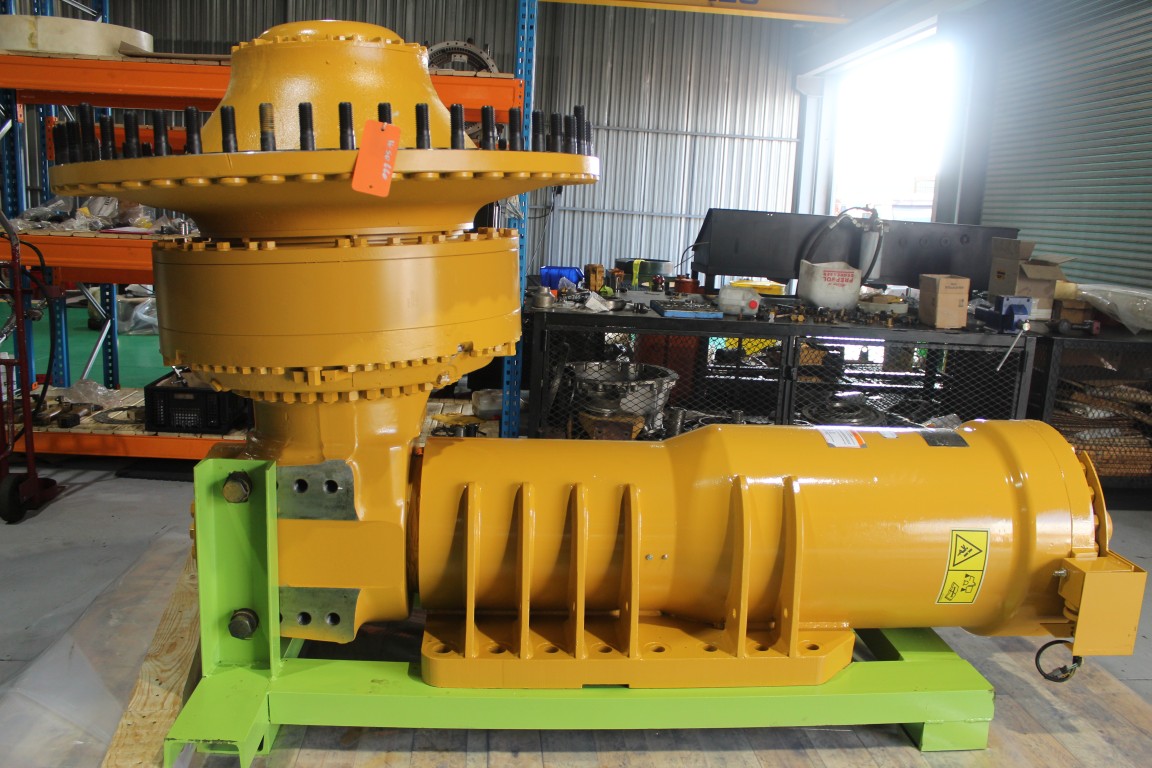

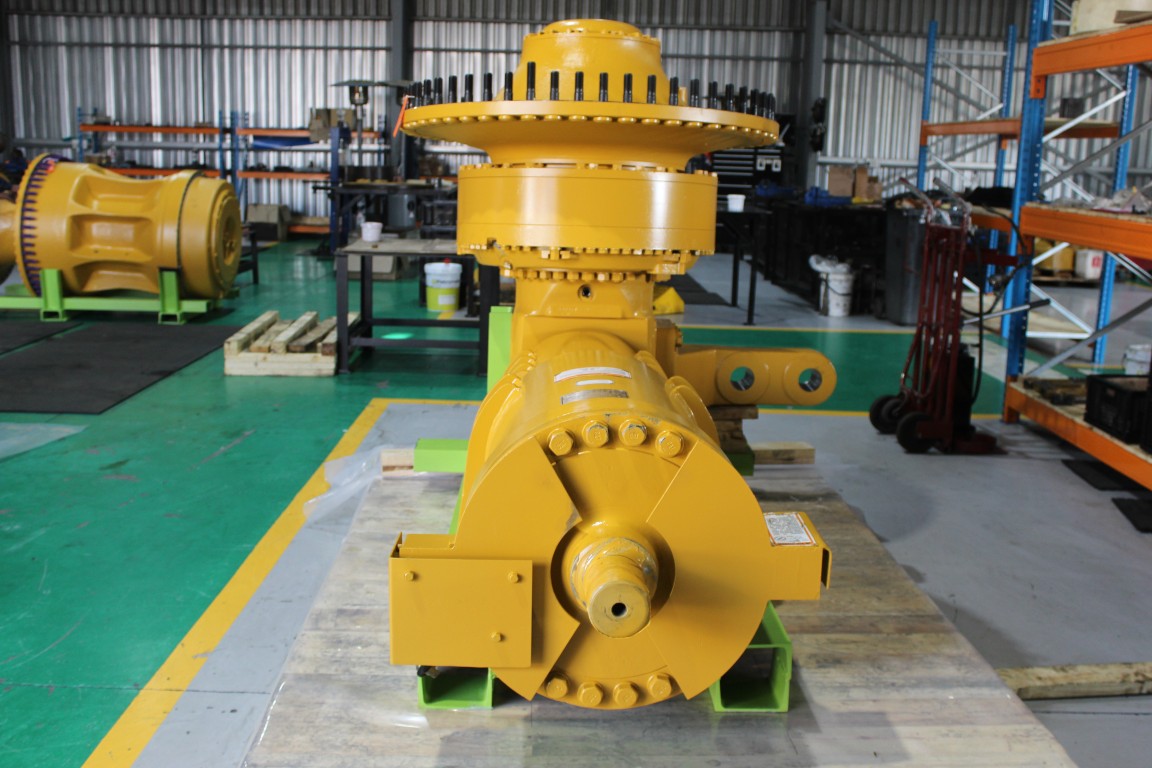

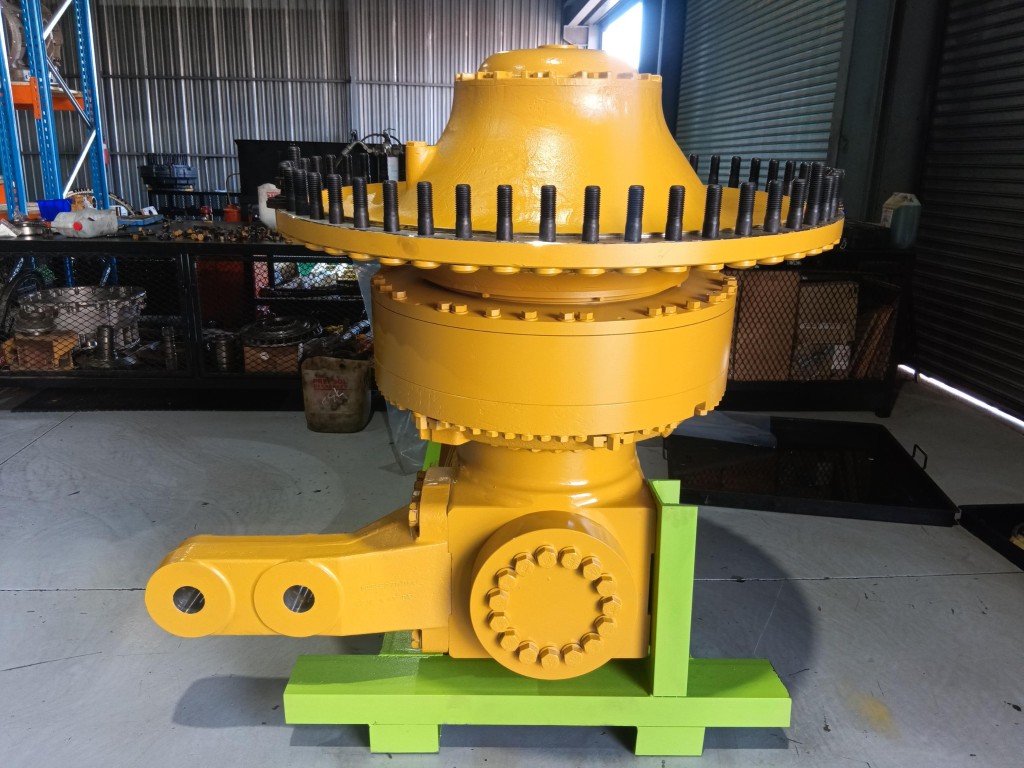

Caterpillar 789D Front Wheel Hub

Heavy-Duty Steering Assembly

OEM-spec Caterpillar 789D front wheel hub engineered for 200-ton-class mining haul trucks. Manufactured from high-tensile alloy steel to withstand extreme radial and thrust loads, featuring precision-machined bearing races and dual-cone spindle mountings for reliable front axle performance and extended service life.

Add part to quote
Category: Tag: Brand:

Description

OEM-Quality Caterpillar 789D Front Wheel Hub Assembly

Maintain peak steering stability and heavy-load capacity across your haul road fleet with a high-durability Caterpillar 789D Front Wheel Hub Assembly. Built specifically for Caterpillar’s 200-ton class off-highway haul trucks, this front hub is precision-engineered to withstand severe radial loads, heavy dynamic braking stress, and rugged terrain impact.

Unlike the rear final drive hubs, the front wheel hub functions as a non-driven, steering wheel support assembly housing heavy-duty tapered roller bearings. It ensures smooth wheel rotation while directly handling severe cornering forces and front axle weight distribution.

Key Features & Benefits

  • High-Tensile Forged Steel Construction: Heat-treated alloy forging provides superior fatigue resistance against severe structural shock loads and impact force.

  • Precision Bearing Seats: Precision-machined internal surfaces ensure optimal fitment for heavy-duty tapered roller bearing cones and cups, minimizing wear and runout.

  • Effective Oil-Bath Lubrication: Designed for continuous wheel-bearing lubrication, reducing friction and shedding heat during long-haul cycles.

  • Durable Duo-Cone / Cat Seal Compatibility: Engineered to maintain absolute seal integrity against moisture, dust, fine dirt, and slurry ingress on active mine sites.

  • Direct OEM Fit: Fully compatible with standard Caterpillar 789D front spindles, brake anchor plates, steering knuckles, and dual front wheel/tire configurations (e.g., 37.00-R57 or 40.00-R57 tires).

Verified Technical Specifications

Parameter Specification
Compatible Machine Model Caterpillar 789D Mining / Haul Truck
Component Type Non-Driven Front Wheel Hub / Spindle Support
Front Wheel Hub Oil Capacity 23 L (6.1 gal) per hub (Approx. refill)
Standard Tire Compatibility 37.00-R57 / 40.00-R57
Nominal Machine Payload Class 181-200 tonnes (200 tons)
Application Front Axle (Left / Right Steering Wheel Group)
