Caterpillar 6030 Swing Drive

Description

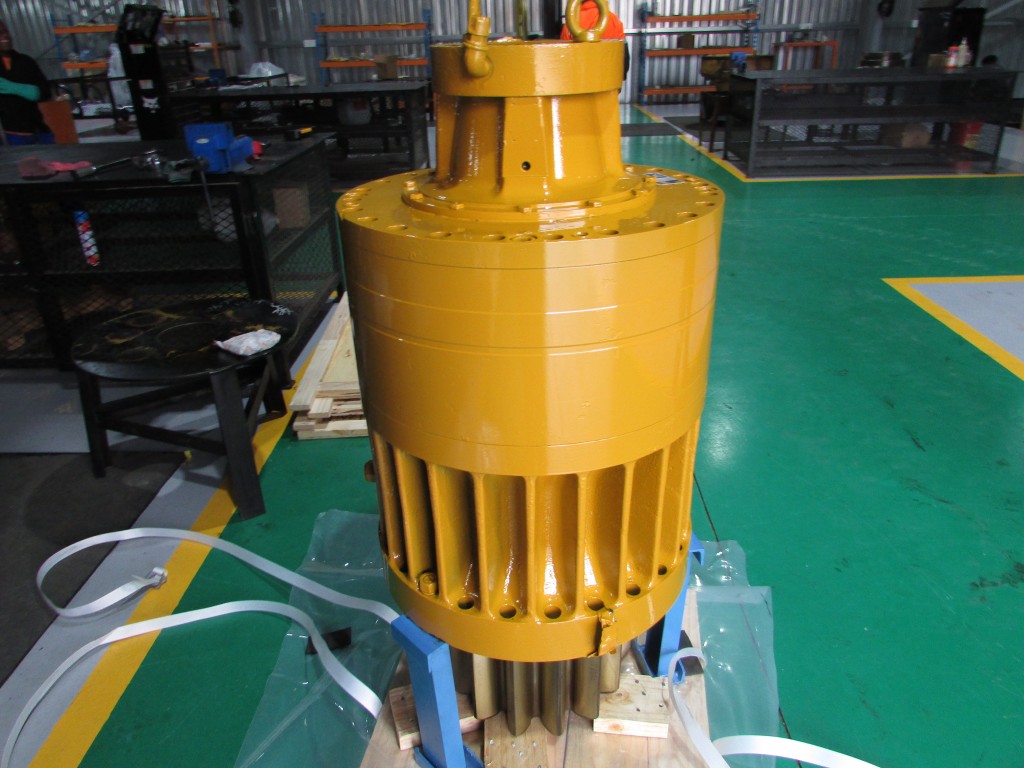

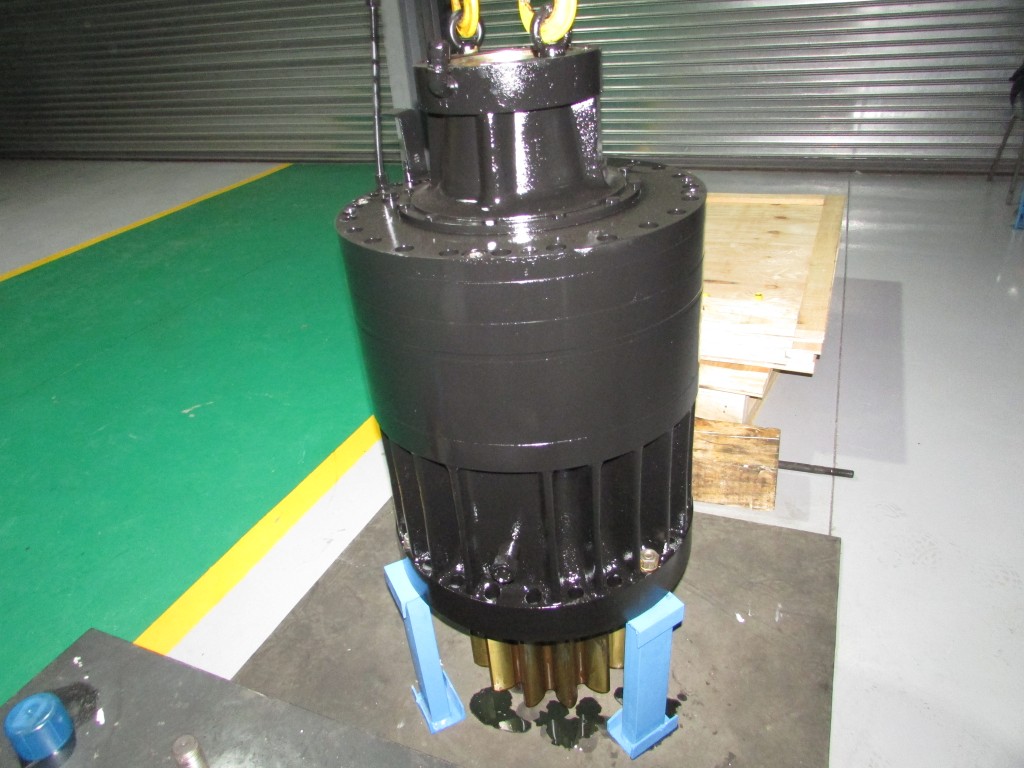

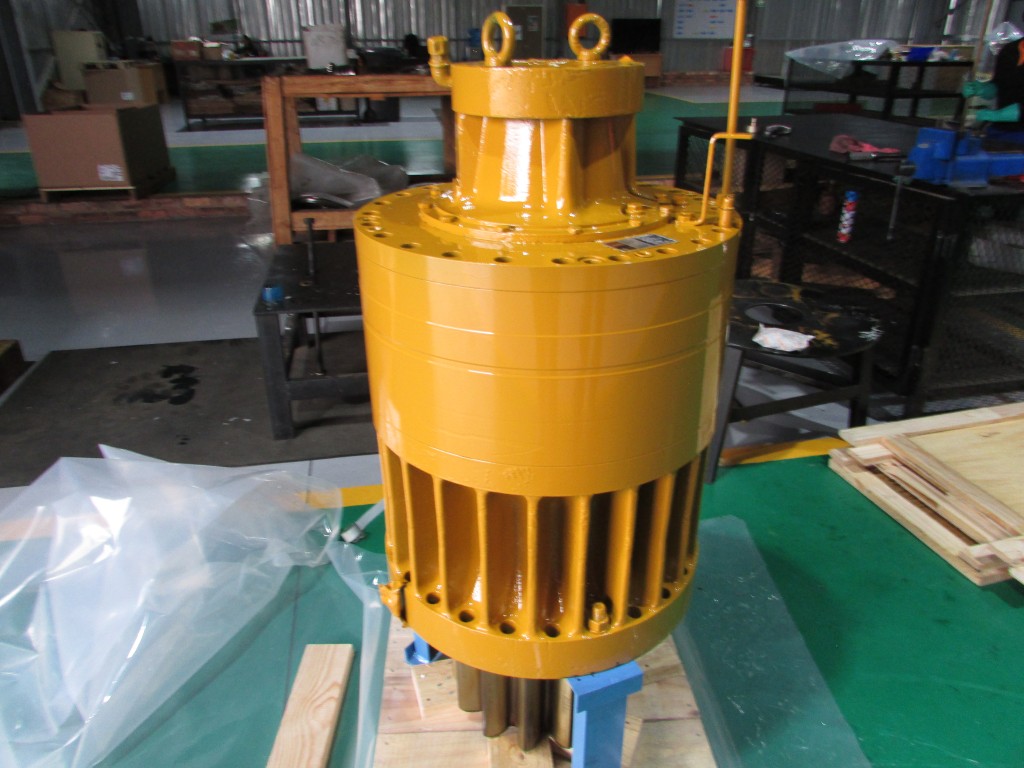

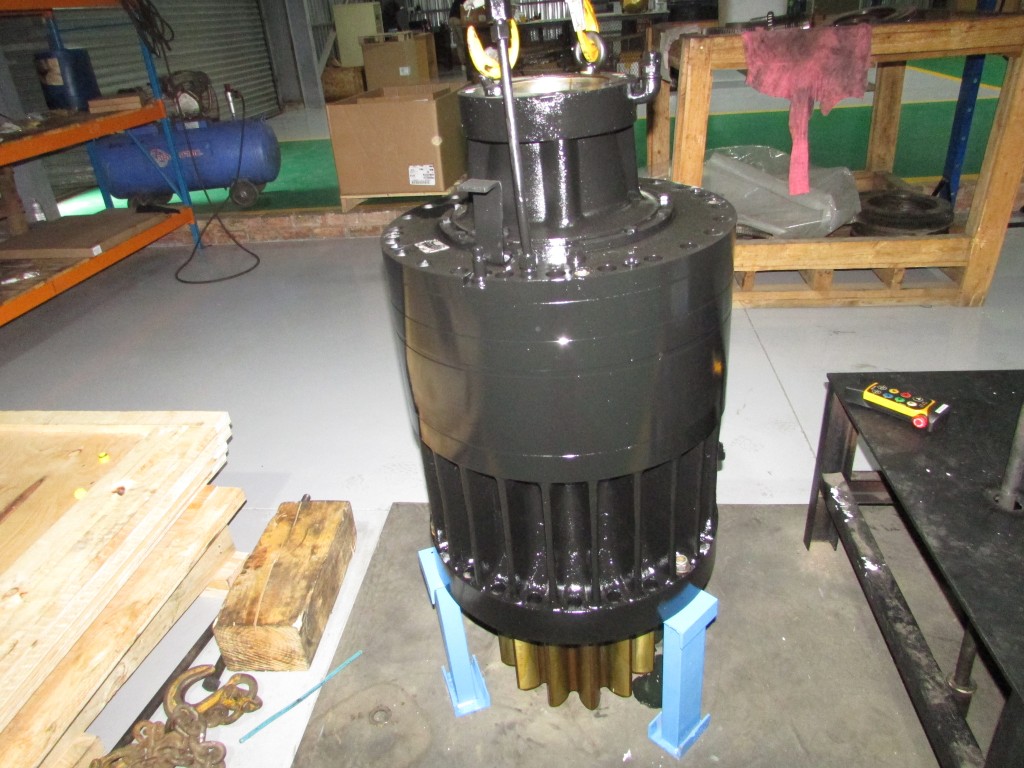

OEM-Quality Caterpillar 6030 Swing Drive Assembly

Maintain rapid swing cycle times and precise superstructure placement on your 300-tonne mining excavator with a heavy-duty Caterpillar 6030 Swing Drive Assembly. Built specifically for Caterpillar 6030 / 6030 FS (formerly Bucyrus RH120-E / O&K RH120) excavators and face shovels, this slewing transmission converts high-pressure hydraulic motor output into immense rotational torque to drive the excavator’s upper structure across continuous loading operations.

Featuring a multi-stage planetary reduction gear set mated to a forged drive pinion shaft, this unit is engineered to absorb extreme side-load shock, heavy inertia shifts, and sudden swing acceleration/braking forces.

Key Features & Benefits

• Multi-Stage Planetary Gear Reduction: Multiplies hydraulic motor speed into high swing torque, allowing smooth slewing of heavy, fully loaded buckets against incline slopes.

• Forged & Induction-Hardened Drive Pinion: Heavy-duty integral pinion gear engages seamlessly with the excavator’s main slewing ring gear, resisting tooth pitting and fatigue failure.

• Integrated Hydraulic Swing Motor & Brake: Houses high-pressure hydraulic motors and automatic wet multi-disc holding brakes to provide positive upper-structure positioning during digging and dumping.

• Heavy-Duty Output Shaft Bearings: Oversized taper roller bearings absorb severe radial and axial thrust loads generated during rapid bucket rotation.

• Advanced Lubrication Passages: Designed for continuous oil circulation around planetary gear stages and bearings to dissipate heat during high-frequency swing cycles.

• Direct OEM Carbody Bolt-In: Machined to exact Caterpillar 6030 mounting flange specifications for direct installation onto the main lower carbody structure.

Verified Technical Specifications
