Caterpillar 6030 Final Drive

Description

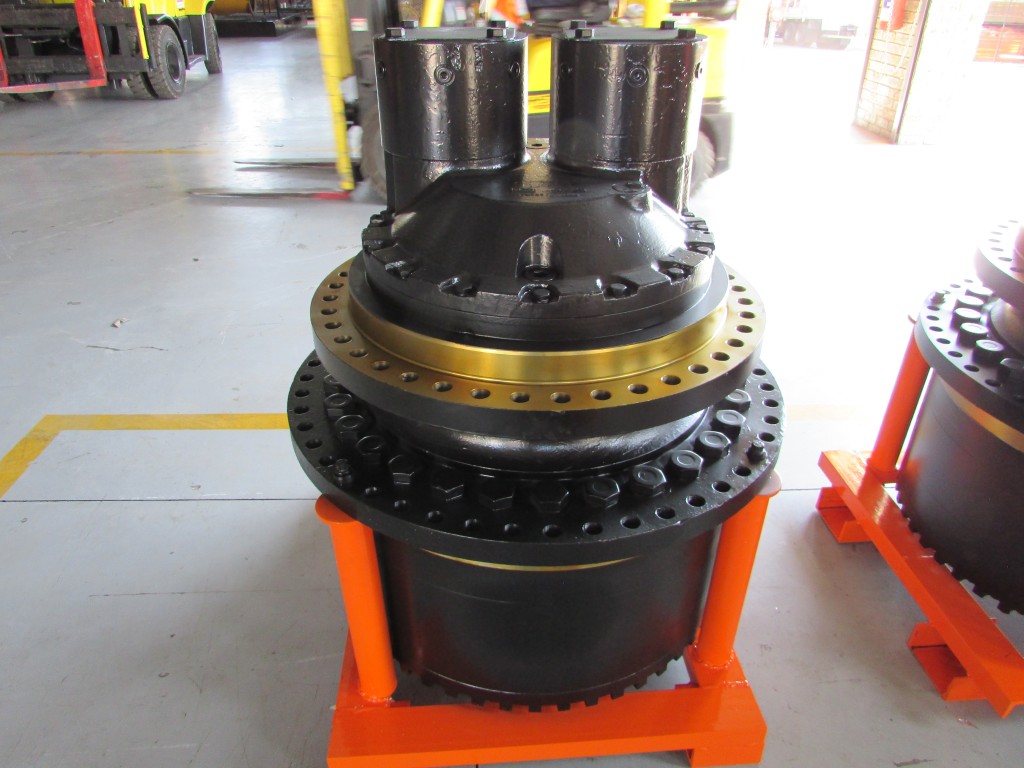

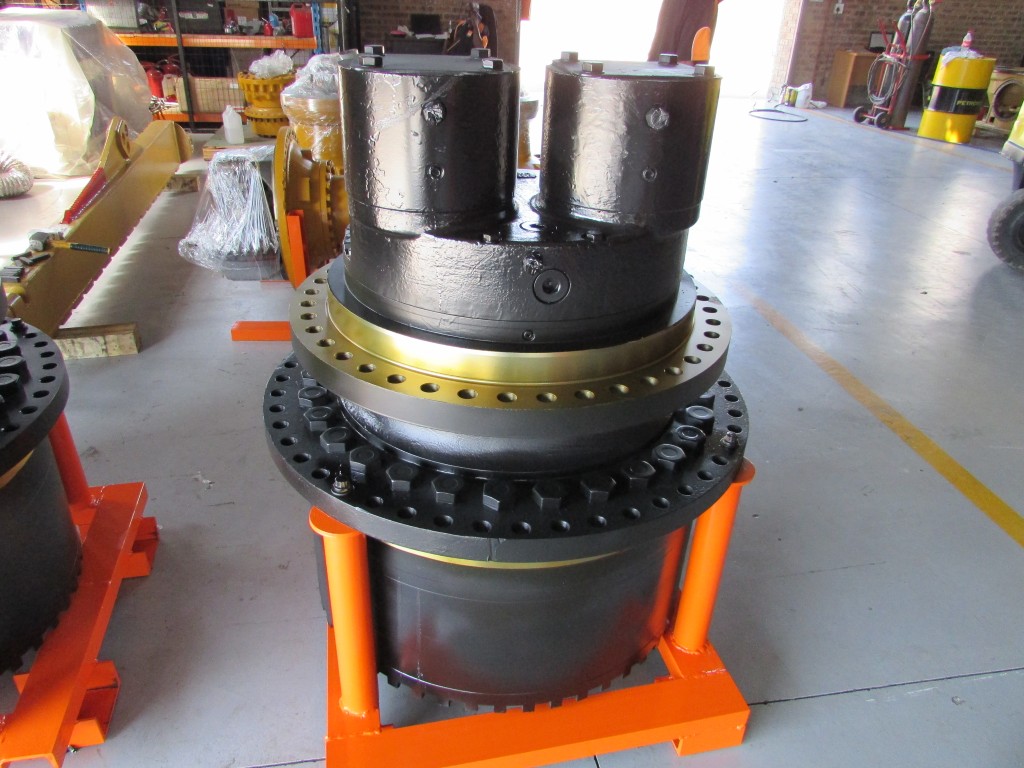

OEM-Quality Caterpillar 6030 Final Drive Assembly

Restore powerful track propulsion and maneuverability to your 300-tonne hydraulic mining excavator with a heavy-duty Caterpillar 6030 Final Drive Assembly. Built specifically for Caterpillar 6030 (formerly Bucyrus RH120-E / O&K RH120) excavators and face shovels, this final drive transmission converts high-pressure hydraulic fluid flow into high-torque propel force to move the machine across extreme pit floor conditions and steep bench inclines.

Featuring a robust multi-stage planetary reduction gear set mated to a high-efficiency hydraulic travel motor, this unit withstands extreme torsional shock loads, heavy track tension forces, and continuous duty cycles.

Key Features & Benefits

• Multi-Stage Planetary Reduction: Converts high-speed travel motor output into immense low-speed drive sprocket torque, overcoming high rolling resistance on soft or rocky pit floors.

• Integrated Bent-Axis Hydraulic Motor: Built to handle operating hydraulic pressures up to 350 bar (5,075 psi), providing smooth speed variation and high braking holding torque.

• Automatic Wet Multi-Disc Parking Brake: Spring-applied, hydraulically released internal brake system holds the excavator securely on steep grades during digging cycles.

• Heavy-Duty Duo-Cone Seal Groups: Maintains absolute oil retention while sealing out abrasive slurry, fine rock dust, mud, and water ingress under harsh environmental exposure.

• Forged Gear Housing & Sprocket Flange: High-tensile steel housing resists flexing under heavy track shoe tension and severe lateral digging forces.

• Direct OEM Track Frame Bolt-On: Precision-machined to exact Caterpillar 6030 side-frame tolerances for immediate drop-in replacement on the left or right undercarriage.

Verified Technical Specifications
