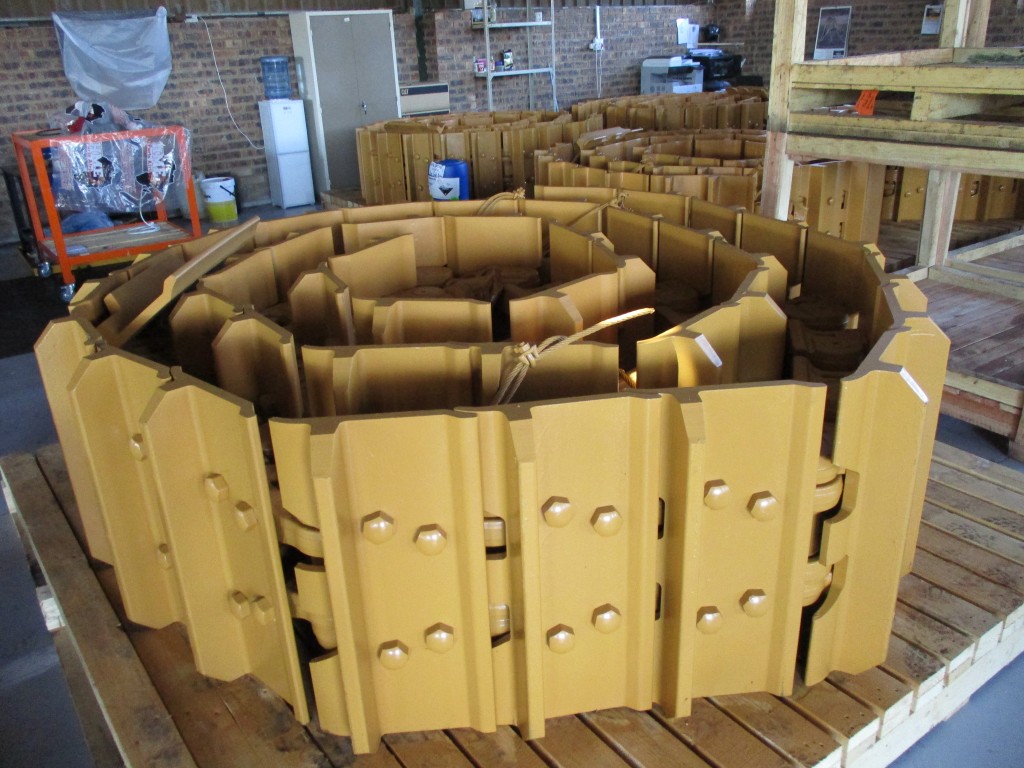

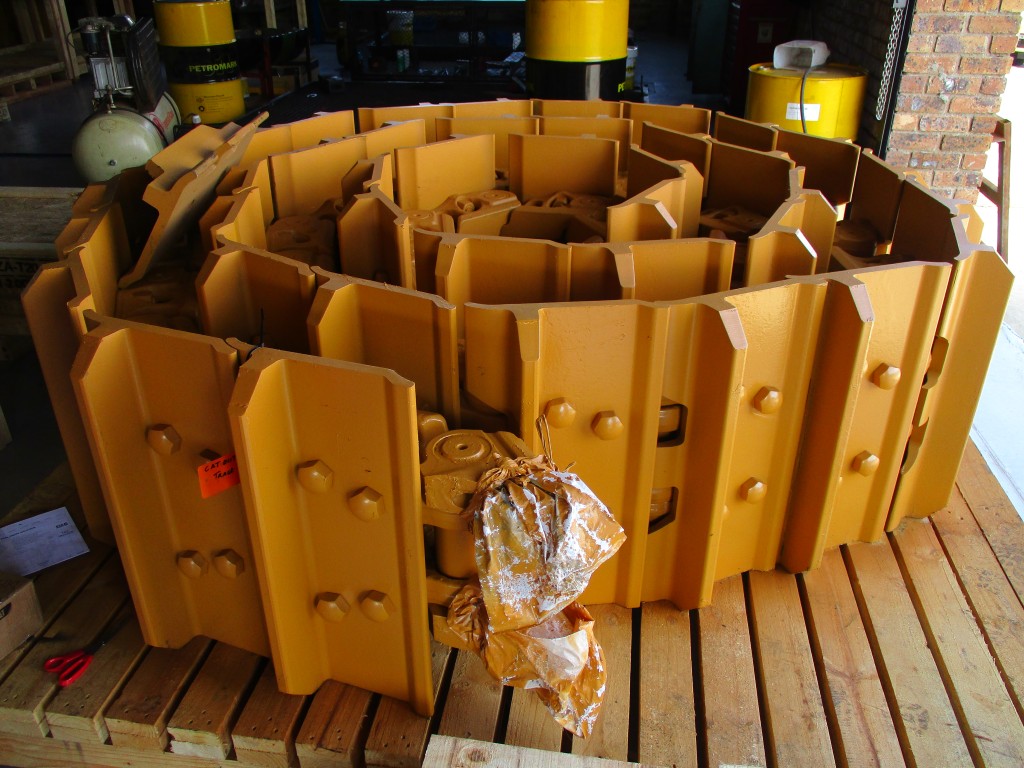

Caterpillar D11T Heavy-Duty Track Groups | Sealed & Lubricated Tracks (SALT)

OEM-spec Caterpillar D11T track chains and complete track groups engineered for 100-ton mining dozers. Features Positive Pin Retention (PPR) technology, Sealed & Lubricated Tracks (SALT), extra-tall induction-hardened link rail profiles, and extreme-service single-grouser track shoes for severe rock ripping

.

Add part to quote
Category: Tag: Brand:

Description

OEM-Quality Caterpillar D11T Heavy-Duty Track Groups & Chains

Maximize traction, prevent pin walking, and eliminate premature pitch extension on your flagship production dozer with heavy-duty Caterpillar D11T Track Groups and Track Chains. Precision-engineered specifically for Caterpillar D11T and D11T CD (Carrydozer) mining tractors operating in severe elevated sprocket environments, these track groups withstand maximum drawbar pull, extreme ripping shock, and abrasive high-wall mining conditions.

Utilizing Caterpillar’s proven Positive Pin Retention (PPR) technology alongside Sealed and Lubricated Track (SALT) architecture, these chains mechanically lock the link to the pin to preserve internal oil lubrication films, preventing joint movement under extreme torsional stress.

Key Features & Benefits

  • Positive Pin Retention (PPR) Interlocking Links: Mechanically locks the link to the pin to completely eliminate axial pin motion (pin walking) and joint play under severe high-impact ripping loads.

  • Sealed & Lubricated Track (SALT) Core: Synthetic oil permanently coats internal pin and bushing wear surfaces, eliminating internal friction, galling, and pitch extension.

  • Extra-Tall Induction-Hardened Link Profiles: Deep-hardened alloy steel links feature expanded rail height to provide maximum wear life, structural rigidity, and resistance to bottom roller scalloping.

  • Extreme Service (ES) Single-Grouser Shoes: Forged from high-tensile, heat-treated alloy steel to resist bending, cracking, and corner spalling when ripping hard granite, basalt, or limestone.

  • Heavy-Duty Split Master Links: Precision-machined split master link design allows fast, secure track installation and servicing without requiring heavy hydraulic pin-press equipment on the bench.

Verified Technical Specifications

Parameter Specification
Compatible Machine Model Caterpillar D11T / D11T CD (Carrydozer)
Dozer Operating Weight Class ~104 – 113 tonnes (230,000 – 248,500 lbs)
Track Chain Technology Heavy-Duty Sealed & Lubricated (SALT) with PPR
Track Sections per Side 41 Links / Sections per side
Standard Pitch 350 mm (13.78 in)
Track Shoe Options 710 mm (28 in) / 840 mm (33 in) / 915 mm (36 in)
Shoe Types Extreme Service (ES) / Super Extreme Service (SES) Single Grouser
Master Link Type Heavy-Duty Split Master Link
Application Lower Undercarriage Track Link Assembly Group
