Caterpillar 777G Wheel Station

Description

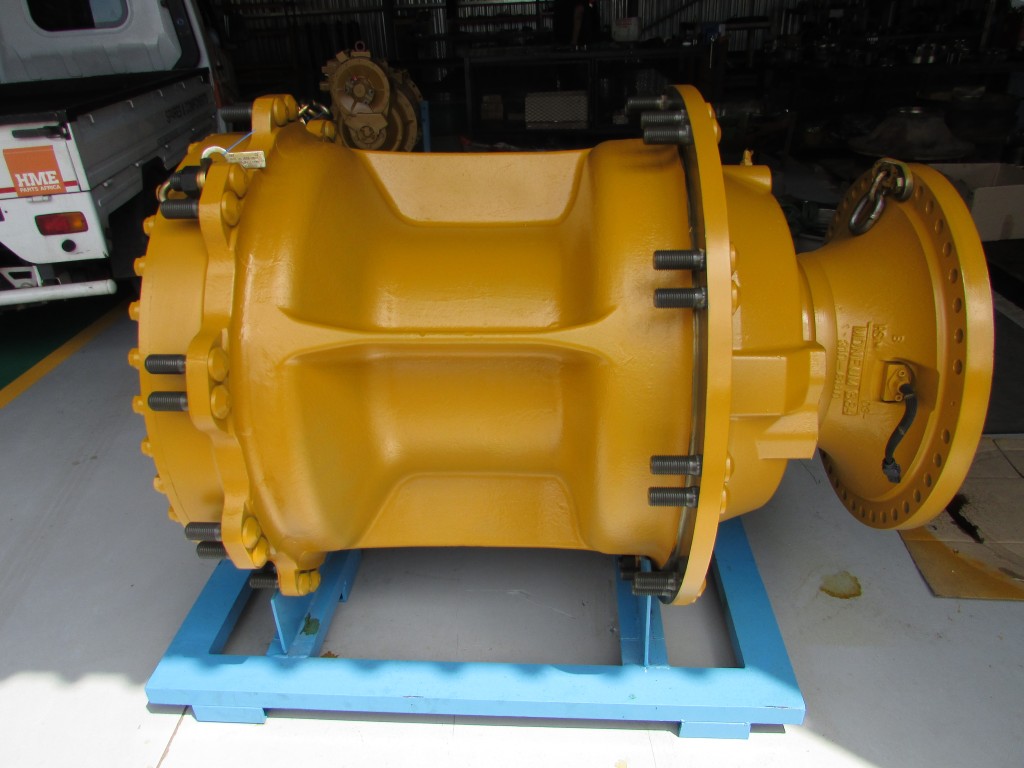

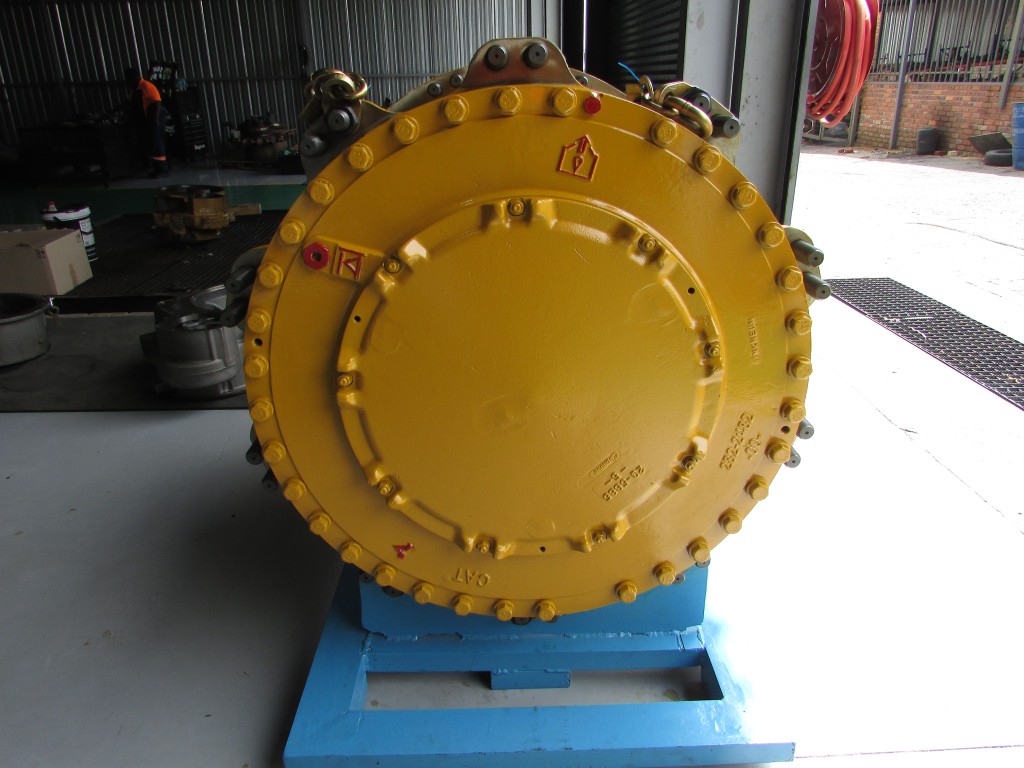

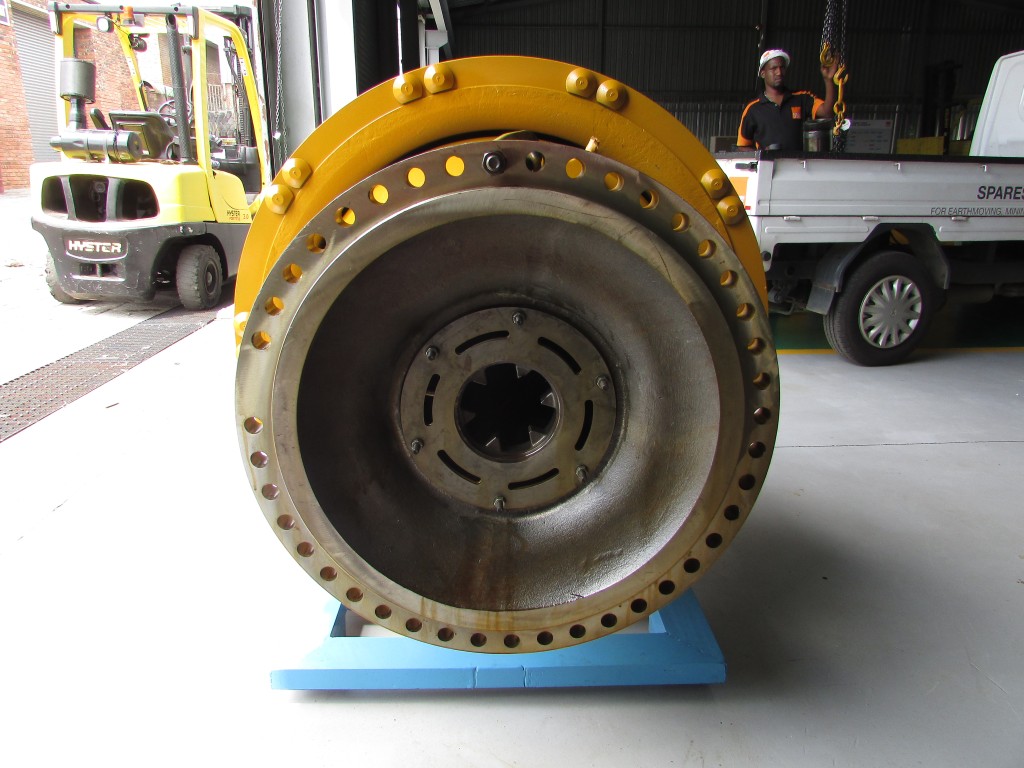

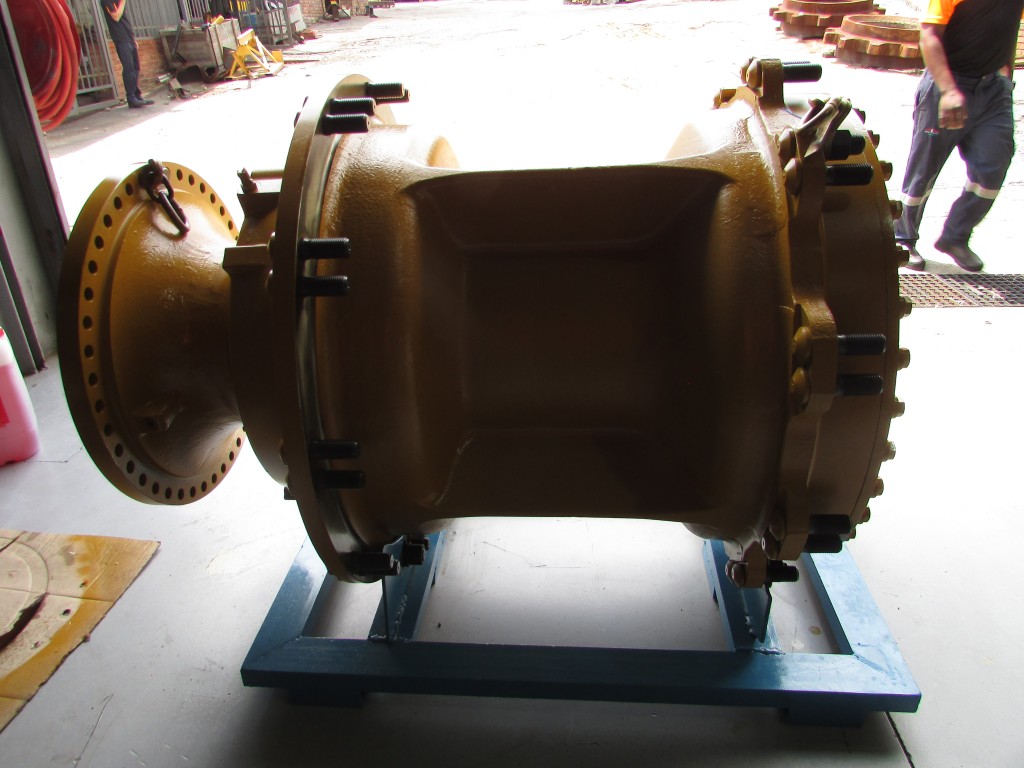

OEM-Quality Caterpillar 777G Wheel Station Assembly

Eliminate extended downtime during major power train overhauls and ensure long-term haul road reliability with a complete Caterpillar 777G Wheel Station Assembly. Designed specifically for Caterpillar’s 100-ton class (91.4-tonne nominal payload) off-highway mining trucks, this fully integrated wheel station combines the structural hub, spindle interface, planetary gear reductions, heavy-duty bearings, Duo-Cone seals, rim hardware, and oil-cooled multi-disc brake pack into a single drop-in unit.

Replacing the entire wheel station as a complete module guarantees factory-matched component tolerances, eliminates premature seal or bearing failure from mismatched wear, and gets your haul truck back on the bench faster.

Key Features & Benefits

• Complete Wheel-End Integration: Integrates the wheel hub, double-reduction planetary system, axle bearings, and force-cooled braking system into one pre-assembled module.

• High-Torque Planetary Reduction: Features Caterpillar’s robust planetary gear setup (6.87:1 planetary ratio / 18.83:1 total reduction ratio) to maximize low-speed rim pull without overloading the driveshaft or differential.

• Oil-Cooled Multi-Disc Brake System: Includes the housing and friction packs for Caterpillar’s liquid-cooled braking system, delivering superior, fade-resistant retarding power on continuous downhill hauls.

• Heavy-Duty Duo-Cone Metal Face Seals: Maintains absolute lubricant retention while completely sealing out fine quarry dust, abrasive slurry, mud, and water ingress.

• Direct OEM Fit: Built to exact Caterpillar 777G factory specifications for direct bolt-on mounting to standard front spindles or rear axle housings.

Verified Technical Specifications
