Caterpillar 777D Suspension Cylinder

Description

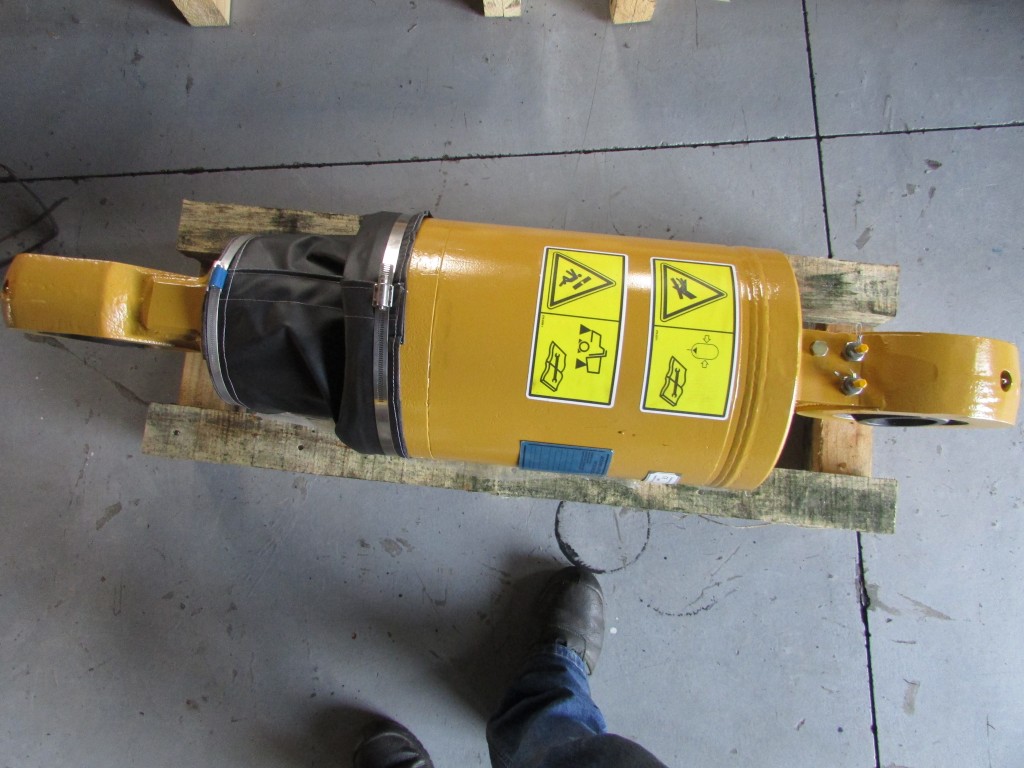

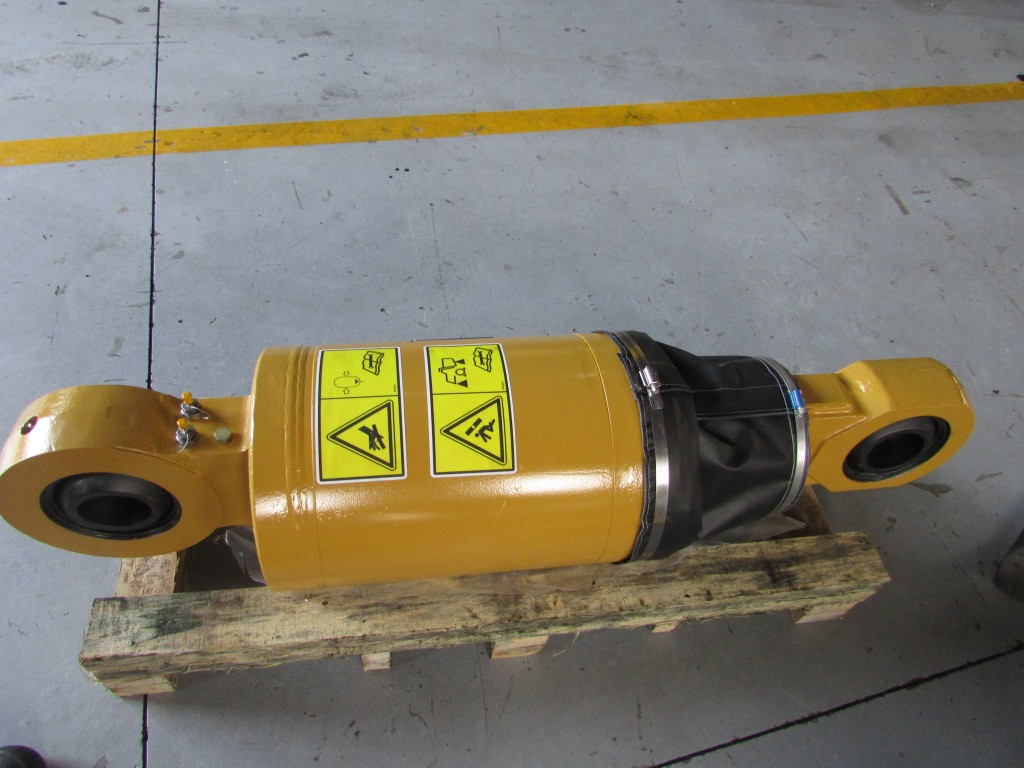

OEM-Quality Caterpillar 777D Suspension Cylinder Assembly

Protect main chassis frame integrity, extend tire life, and ensure smooth operator control across high-volume haul routes with a heavy-duty Caterpillar 777D Suspension Cylinder Assembly. Engineered specifically for Caterpillar’s 777D (91-tonne nominal payload) off-highway mining trucks, these self-contained oleo-pneumatic (nitrogen-over-oil) struts serve as the primary shock absorption system between the wheel assemblies and the truck mainframe.

By compressing dry nitrogen gas over heavy-duty hydraulic fluid, the cylinder absorbs dynamic impact loads during high-speed travel while providing controlled rebounding under full 100-ton payload conditions.

Key Features & Benefits

• Variable-Stroke Oleo-Pneumatic Damping: Combines the compressibility of nitrogen gas with hydraulic oil metering to absorb harsh impacts, reducing frame stress and operator fatigue.

• Chrome-Plated High-Strength Alloy Piston Rod: Heavy-wall piston rod features a thick hard-chrome plating to resist scratching, corrosion, and seal abrasion in harsh mining environments.

• Multi-Stage High-Pressure Seal Groups: Premium polyurethane and nitrile seal packages maintain nitrogen pressure and prevent oil leakage under extreme thermal and pressure fluctuations.

• Integrated Kingpin Steering Mounts (Front): Front suspension cylinders double as kingpin support spindles for precise front-wheel steering geometry and alignment.

• Direct OEM Chassis Bolt-On: Manufactured to exact Caterpillar 777D dimensional specifications for seamless installation into front frame mounts or rear axle trunnion housings.

Verified Technical Specifications
